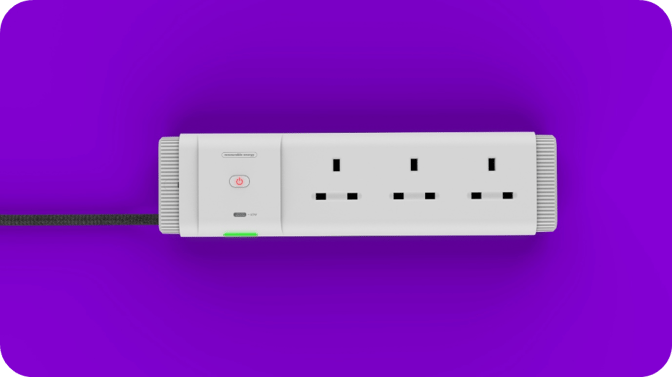

This document details the technical specifications of the TGX
|
Category |
Description |
|
Model No |
TGX |
|
Amp rating |
16A |
|
Power voltage supply |
100-250 V AC |
|
Power consumption |
<1 W |
|
Safety |
All Channels: 25 A > 60 seconds |
|
Operating temperature |
-10°C to +40°C |
|
Operating humidity |
0-95% RH, no condensation |
|
Dimensions |
283 x 74 x 34 mm |
|
Connectors |
GST to GST, GST to Three Pin |
|
Control |
Single Button Override |
|
Wi-Fi support |
2.4 GHz/5GHz |
|
Wi-Fi security |
WPA2/WPA3 PSK |
|
Colour |
White |
|
Certifications |
BS1363, UKCA, CE |
|
Guarantee |
10-year guarantee for manufacturing faults and defects |
|
Connectors |
GST to GST, GST to Three Pin |
