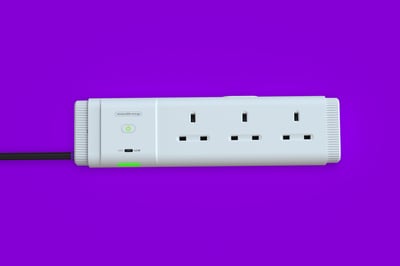

Safety on a TGX Extension Lead

On a measurable.energy TGX Extension lead a single appliance plugged in will trigger the safety service to 'trip' (turn off) the socket if:

  • Current exceeds 16A for a 60 seconds.

When two appliances or more appliances are plugged in the safety service will trigger a 'trip' if:

  • Total current exceeds 16A for 60 seconds.

This is because the TGX extension Lead has one point of control that turns on/off power to the whole unit.


The TGX will no longer provide power and the indicator light will flash amber.

The TGX can be untripped be performing a soft reset. To do this you hold the power button for 5 seconds.

After holding the button for 5 seconds the impact indicator will flash to acknowledge the soft reset. This applies to both online and offline TGXs.

The TGX can also be untripped by logging into the Hub navigating to the TGX page and selecting the 'Reset Tripped Socket'' button under more information.
