Safety on a TGU Desk Module

On a measurable.energy TGU Desk Module a single appliance plugged in will trigger the safety service to 'trip' (turn off) the socket if:

  • Current exceeds 5A for a 15 seconds.

When two or more appliances are plugged in the safety service will trigger a 'trip' if:

  • Total current exceeds 5A for 15 seconds.

This is because the TGU Desk Module has one point of control that turns on/off power to the whole unit. Desk mounted units have a 5A compliance requirement. measurable.energy Desk Modules conforms to this legal requirement and offers the benefit of reduced maintenance visits as our digital fuses do not need to be replaced.

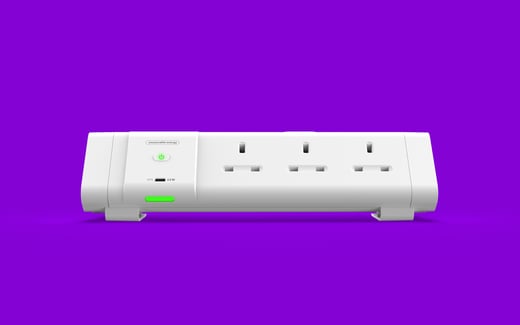

ME-tgx_WP_FRT.8989

The TGU will no longer provide power and the indicator light will flash amber.

The TGU can be untripped be performing a soft reset. To do this you hold the power button for 5 seconds.

After holding the button for 5 seconds the impact indicator will flash to acknowledge the soft reset. This applies to both online and offline TGUs.

The TGU can also be untripped by logging into the Hub navigating to the TGU page and selecting the 'Reset Tripped Socket'' button under more information.
