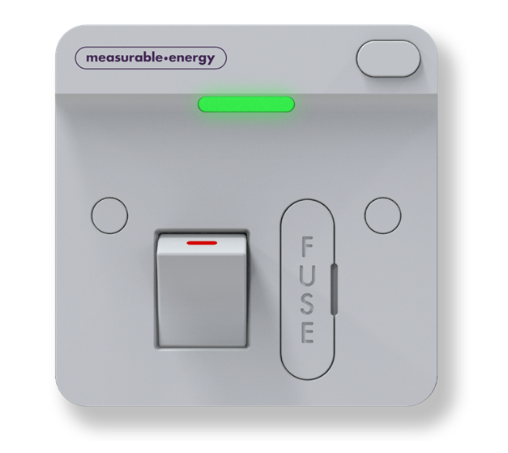

This document details the technical specifications of the measurable.energy Fused Connection Unit. Our fused spurs can be wall fitted with a regular 25 mm back box and are a direct replacement for standard fused connection units.
|
Category |
Description |
|---|---|
|
Amp rating |
13 A |
|
Power voltage supply |
100-250 V AC |
|
Power consumption |
<0.5 W |
|
Operating temperature |
-10°C to +40°C |
|
Operating humidity |
0-95% RH, no condensation |
|
Number of earth terminals |
2 |
|
Number of gangs |
1 |
|
Dimensions |
86 x 86 x 29 mm |
|
Minimum back box depth |
25 mm deep |
|
Switched/unswitched |
Switched - double pole |
|
Flex outlet |
Yes |
|
Screwed/screwless |
Screwed |
|
Wi-Fi support |
2.4 GHz |
|
Wi-Fi security |
WPA2/WPA3 PSK |
|
Colour |
White |
|
Certifications |
BS1363, UKCA and CE |
|
Guarantee |
10-year guarantee for manufacturing faults and defects |
|
Safety |
Fuse alerts, safety cut offs and condition monitoring |
