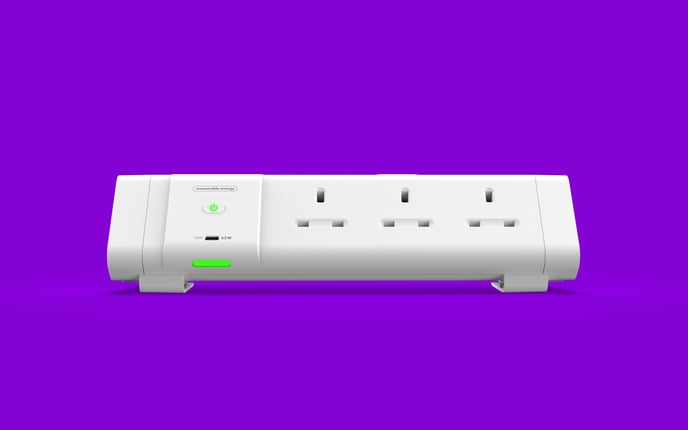

Desk Module Spec Sheet (TGU)

Model No

TGU

Amp rating

5A individual

Power voltage supply

100-250 V AC

Power consumption

<1 W

USB

USBC 65W

Safety Shut Off

All Channels: 5 A > 10 seconds

Operating temperature

-10°C to +40°C

Operating humidity

0-95% RH, no condensation

Dimensions

283 x 74 x 34 mm

Control

Single Button Override

Wi-Fi support

2.4 GHz/5GHz

Wi-Fi security

WPA2/WPA3 PSK

Colour

White

Certifications

BS1363, UKCA, CE

Guarantee

10-year guarantee for manufacturing faults and defects

Mounting

Removable desk clamps

Connectors

GST to Three Pin, GST to GST, GST Splitter
