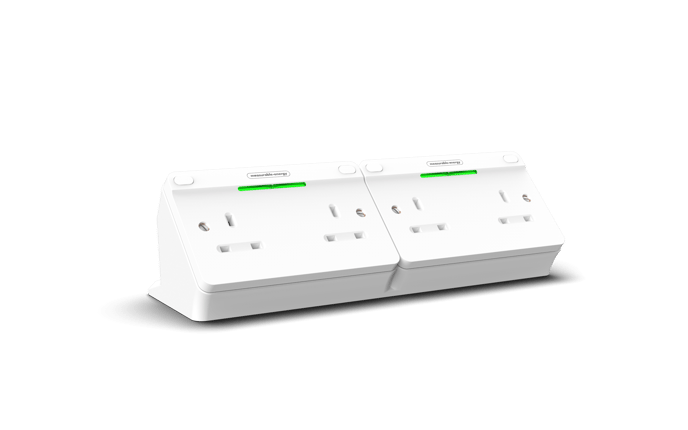

This document details the technical specifications of the measurable.energy Desk Extension. The Desk Extension consists of two of our type G plug sockets (DSSO) fitted within a desk mount enclosure and standard IEC connector.
|
Category |
Description |
|---|---|
|
Amp rating |
10 A |
|
Power voltage supply |
100-250 V AC |
|
Power consumption |
<1 W |
|
Safety |
16 A > 3 minutes |
|
Operating temperature |
-10°C to +40°C |
|
Operating humidity |
0-95% RH, no condensation |
|
Number of earth terminals |
4 |
|
Number of gangs |
4 |
|
Dimensions |
302 x 120 x 92 mm |
|
Switched/unswitched |
Switched - single pole |
|
Screwed/screwless |
Screwed |
|
Wi-Fi support |
2.4 GHz |
|
Wi-Fi security |
WPA2/WPA3 PSK |
|
Colour |
White |
|
Connector |
IEC |
|
Certifications |
BS1363, UKCA, CE & BRE |
|
Guarantee |
10-year guarantee for manufacturing faults and defects |
|
MTBF |
113,880 hours |
